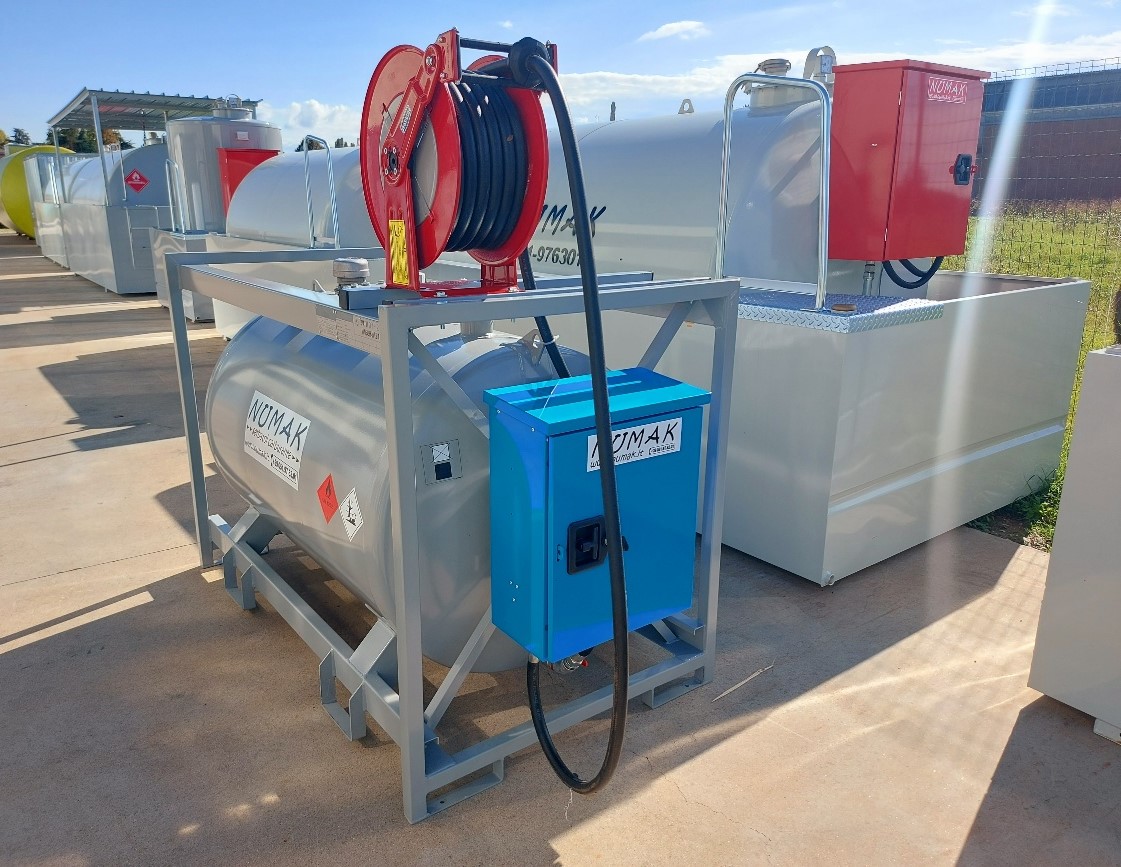

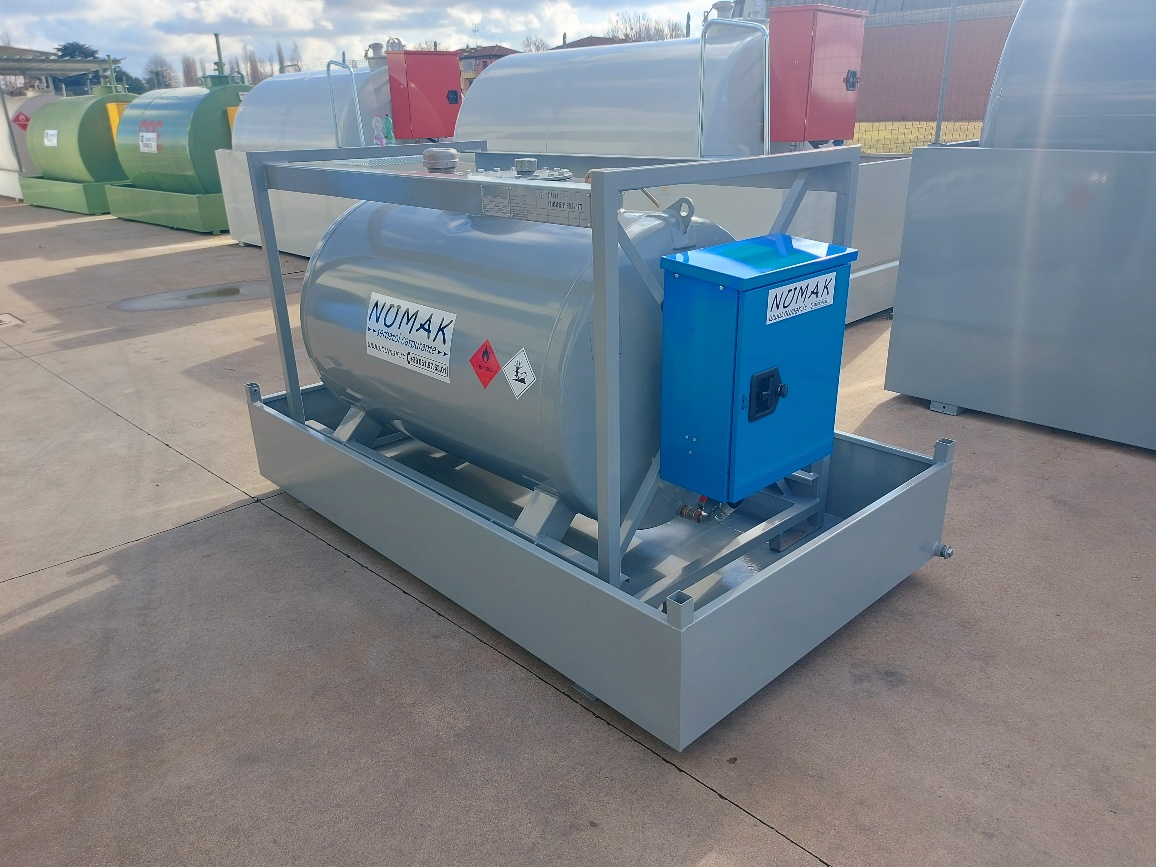

manufactured with horizontal axis in carbon steel top quality, thickness 25/10, submerged arc welded, place inside of a strong loom for to make the lifting from all side by a forklift and protected the abovementioned and its accessories from shocks.

Equipment support:

• Bulkheads internal to restrict the shaking of the liquid during transport and avoid dangerous movements (only for capacity
  600 lt and 900 lt)
• Flange in exit with against flange from 1" 1/4  ( for capacity from 260 lt to 1" ) .
• Hatch diam. outside mm 400 with bolts and gasket
• Valve approved double effect to prevent the release of the product in the event of a rollover
• Safety valve diam.2 " according to the rule of law, in aluminum fuse to protect the external accidents
• Nr.02 ugs of lifting, lifting the top ( even at full load)
• Frame of external protection, prepared for the shift forks
• Safety Deposit Box for brew group in painted steel with door key anti-tampering, equipped with support for tube and nozzle

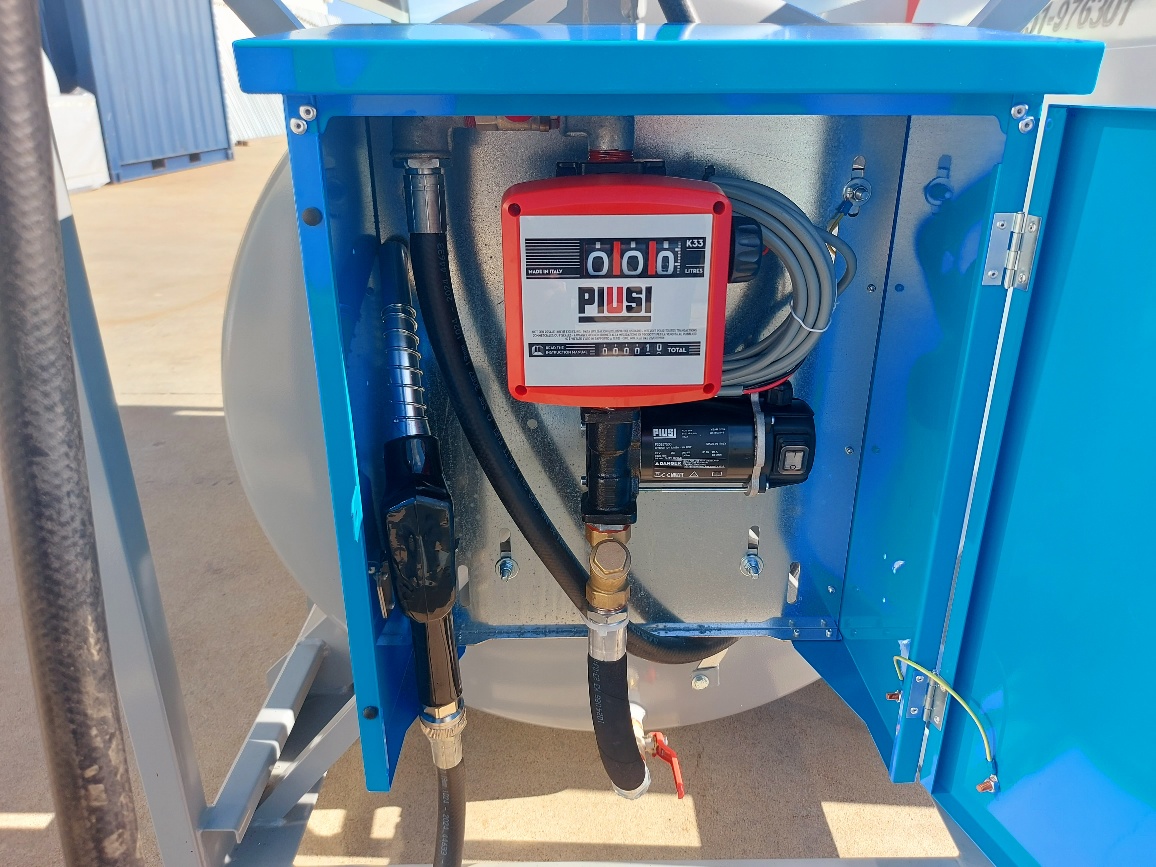

• Supply Group content in the locker: composed of submersible car-adescante 30/40 LT/MIN with by-pass and suction filter, engine 12 or 24 volt DC, meter for private use with partial reset and totalizator progressive
• Flexible tube from ¾" with fittings to pressure long 5 mt., automatic nozzle with swivel coupling
• Painted externally with anti rust.
• Color at the discretion of our production

Supporting Documents:

• Initial Inspection, issued by authorised agency ( MTC)
• Certificate of conformity supply-group CE
• Manual for use
• Calibrated table

Capacity 250 - 380 - 450 - 600 - 900 liters
