New directives concerning atmosphere polluting emissions reductions are respected thanks to the installation of a catalyst on the trucks (SRC) which needs to be used with a special liquid, a mix of water and urea, called Adblue.
Each truck has to have an additional tank to contain this special liquid.
From an accurate analysis on problems concerning urea transfer and distribution, we selected a range of reliable products built with materials which are compatible with this fluid.

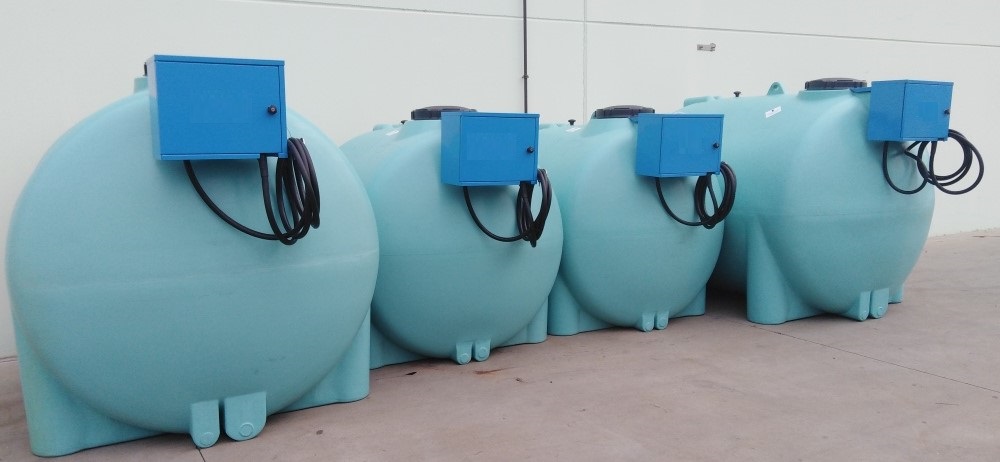

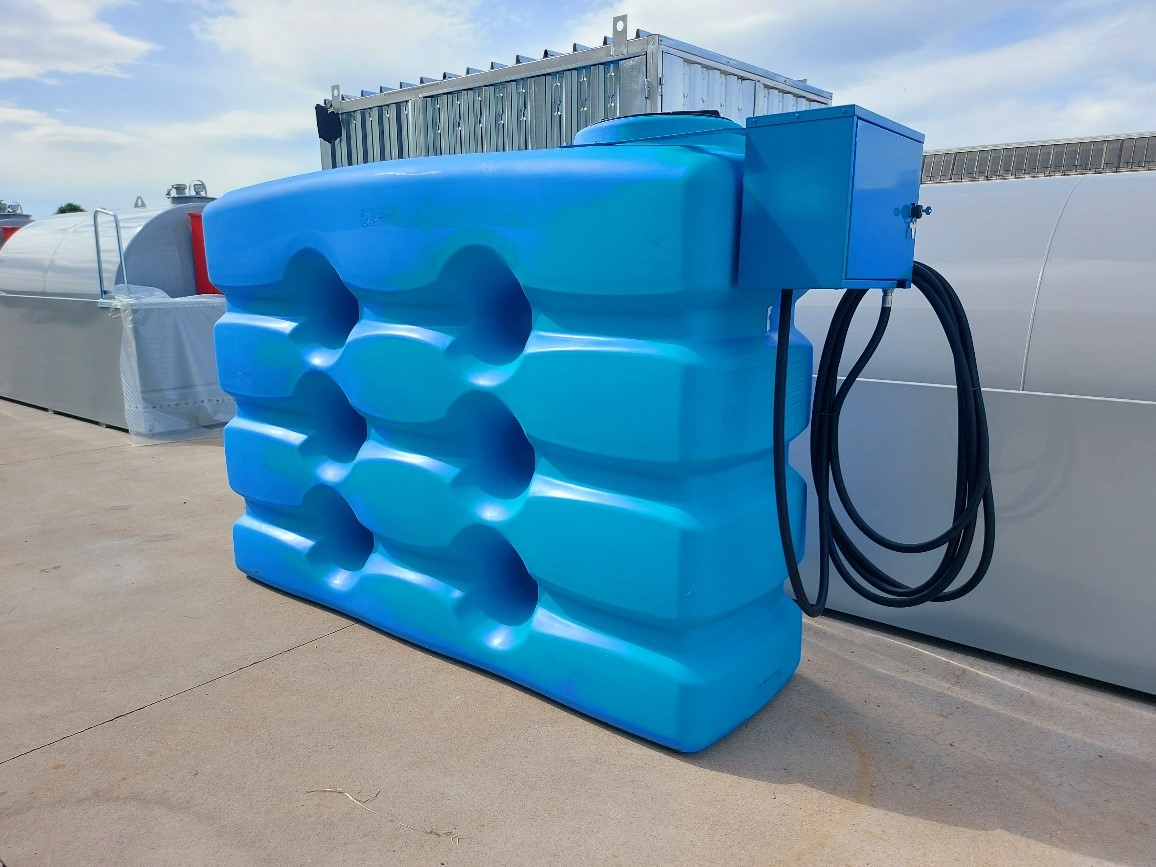

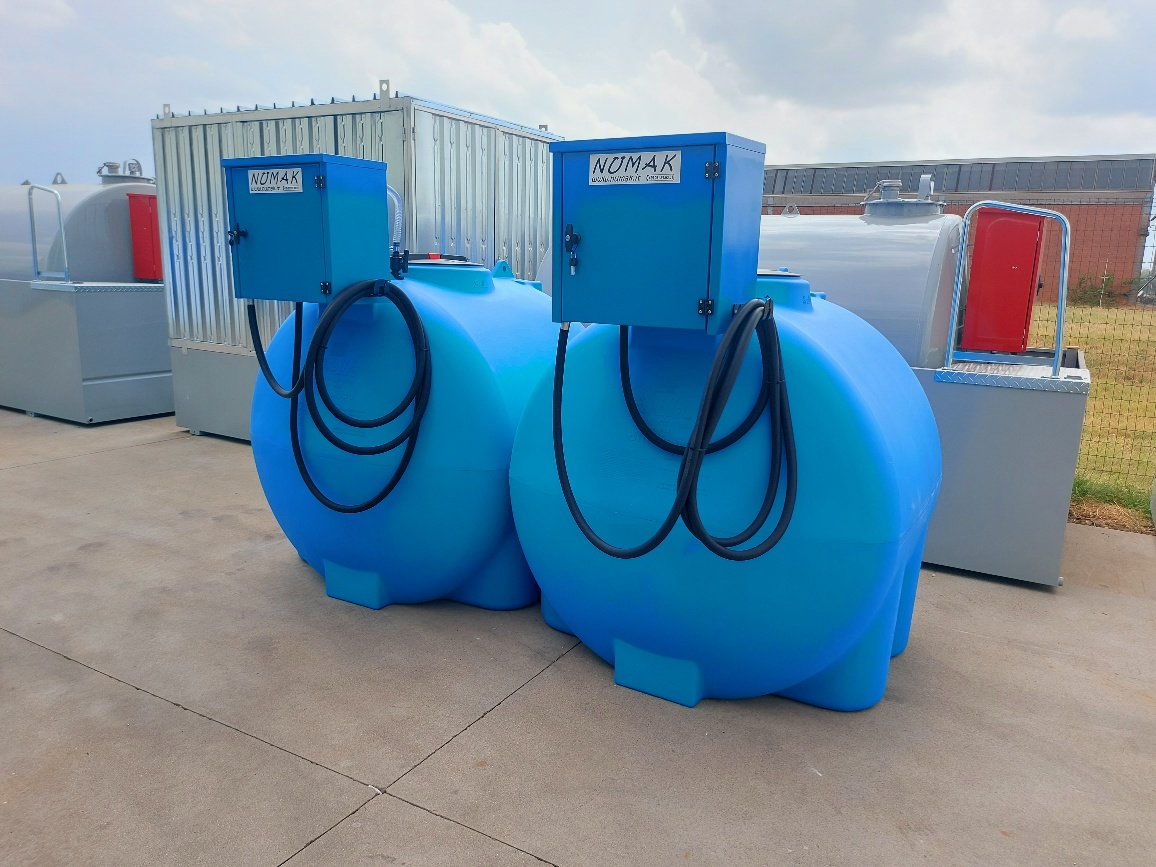

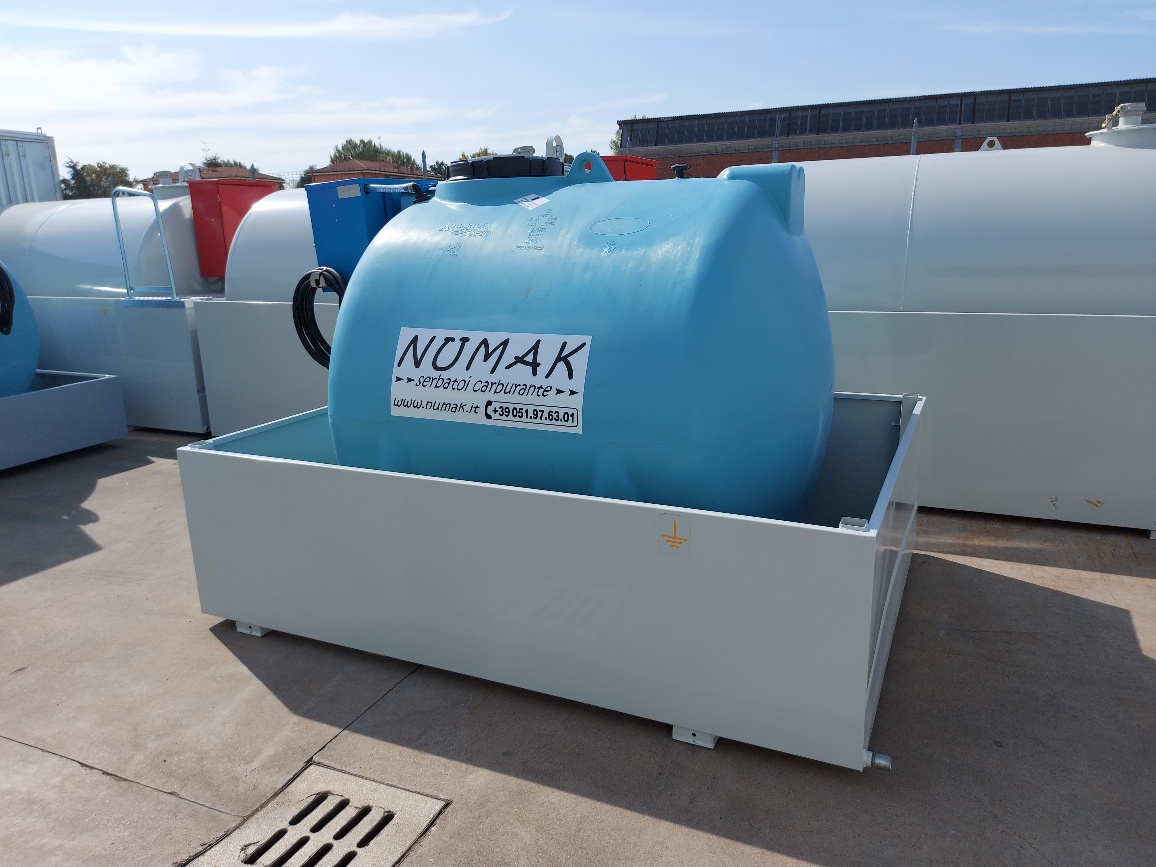

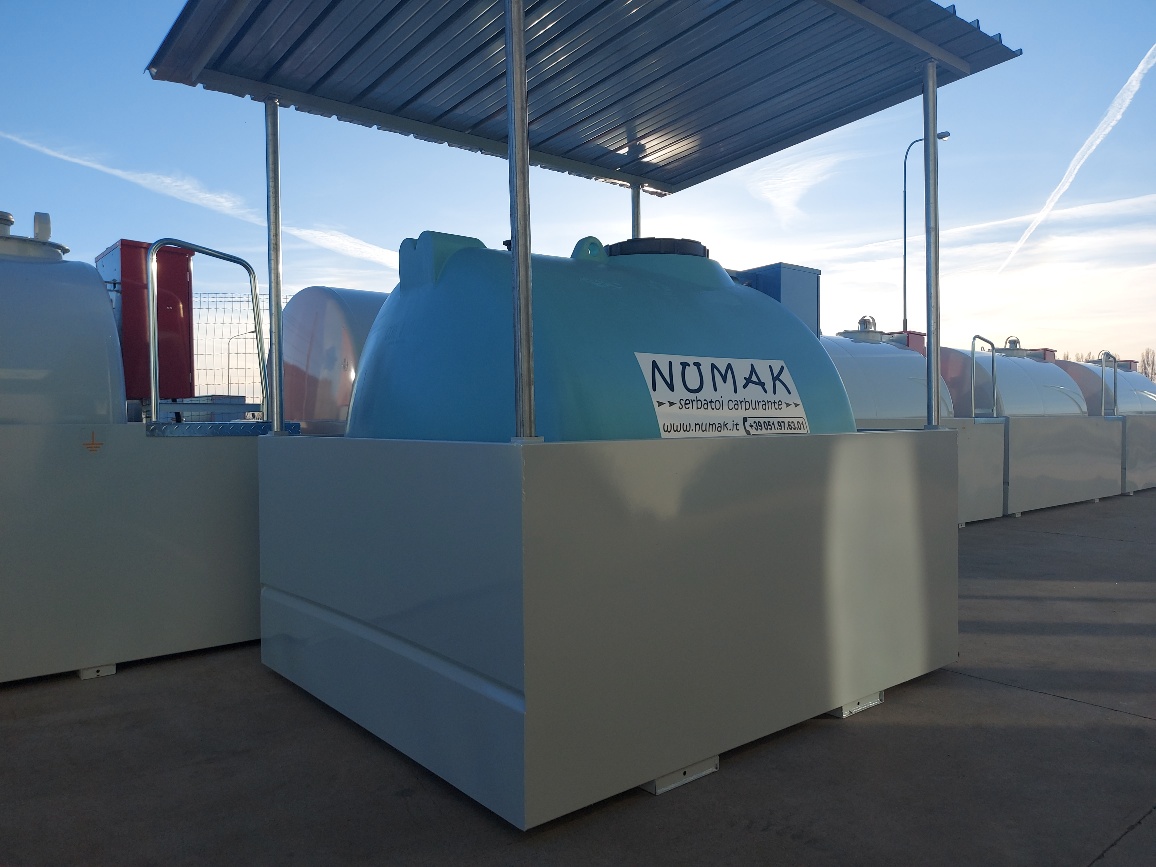

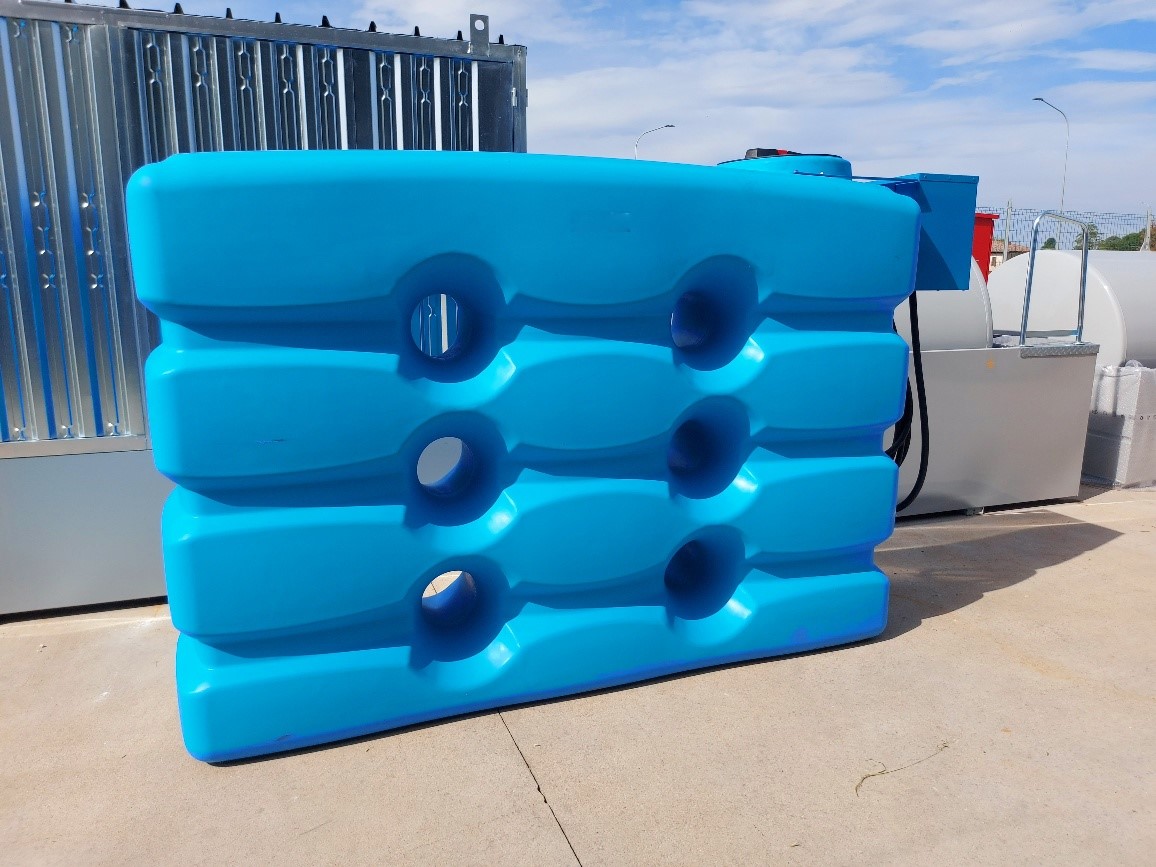

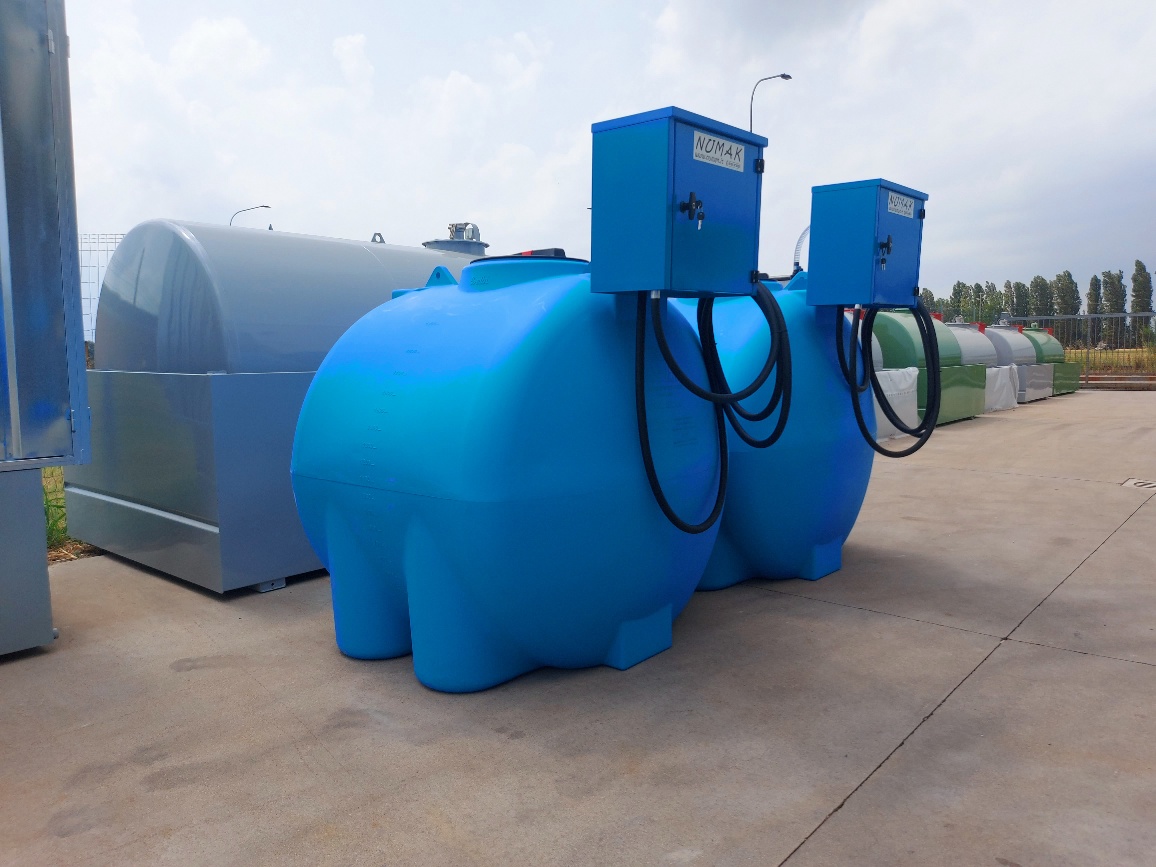

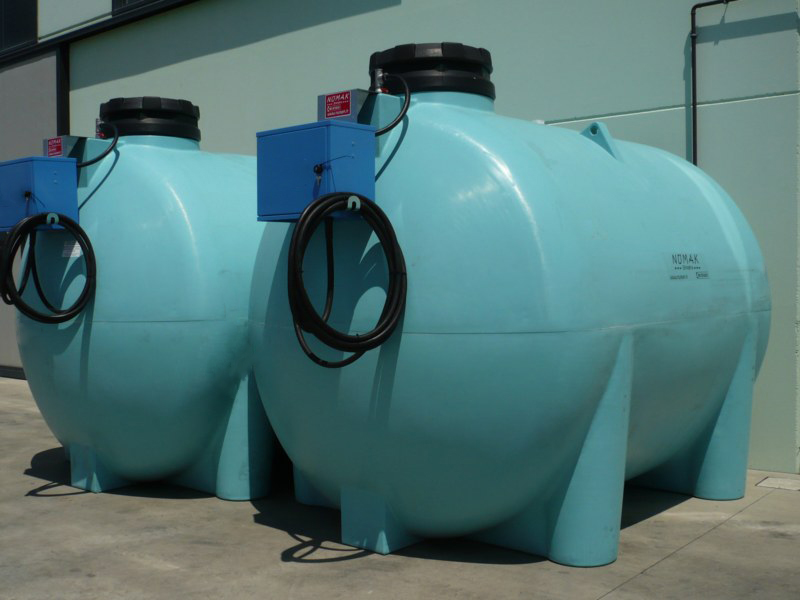

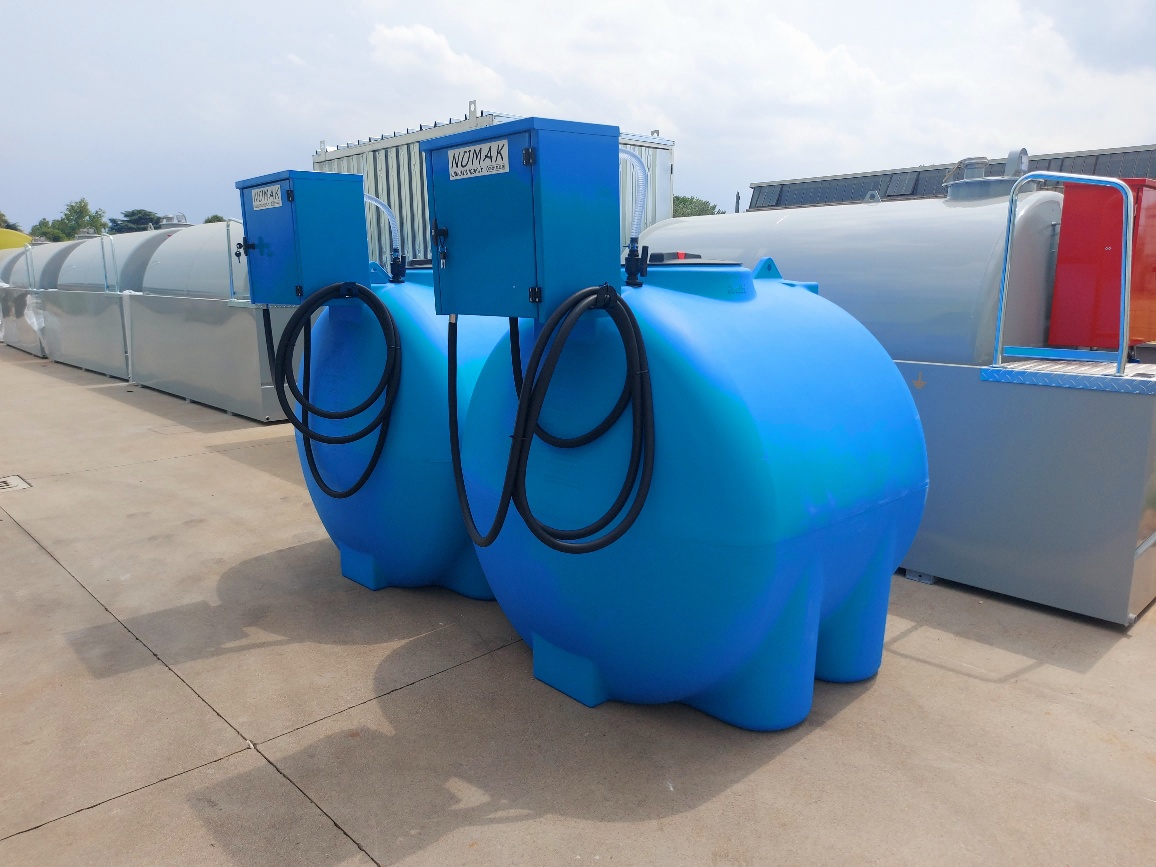

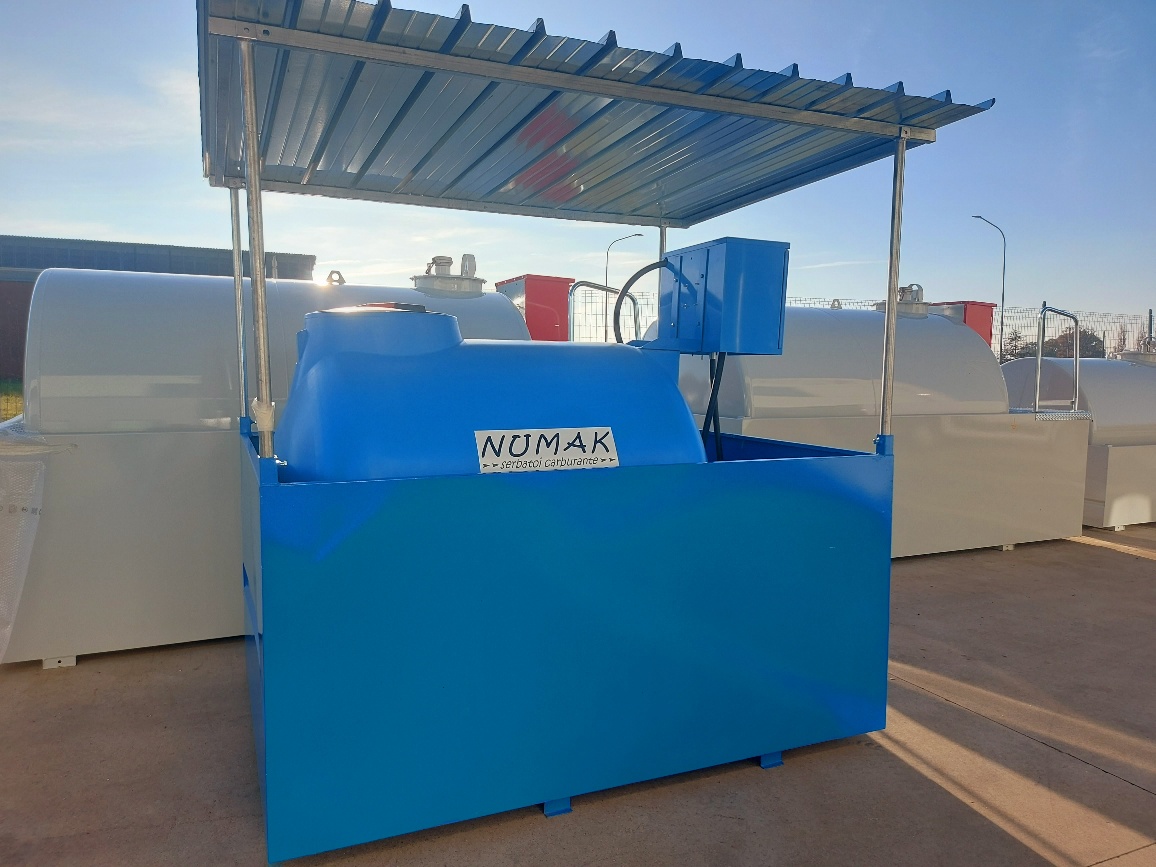

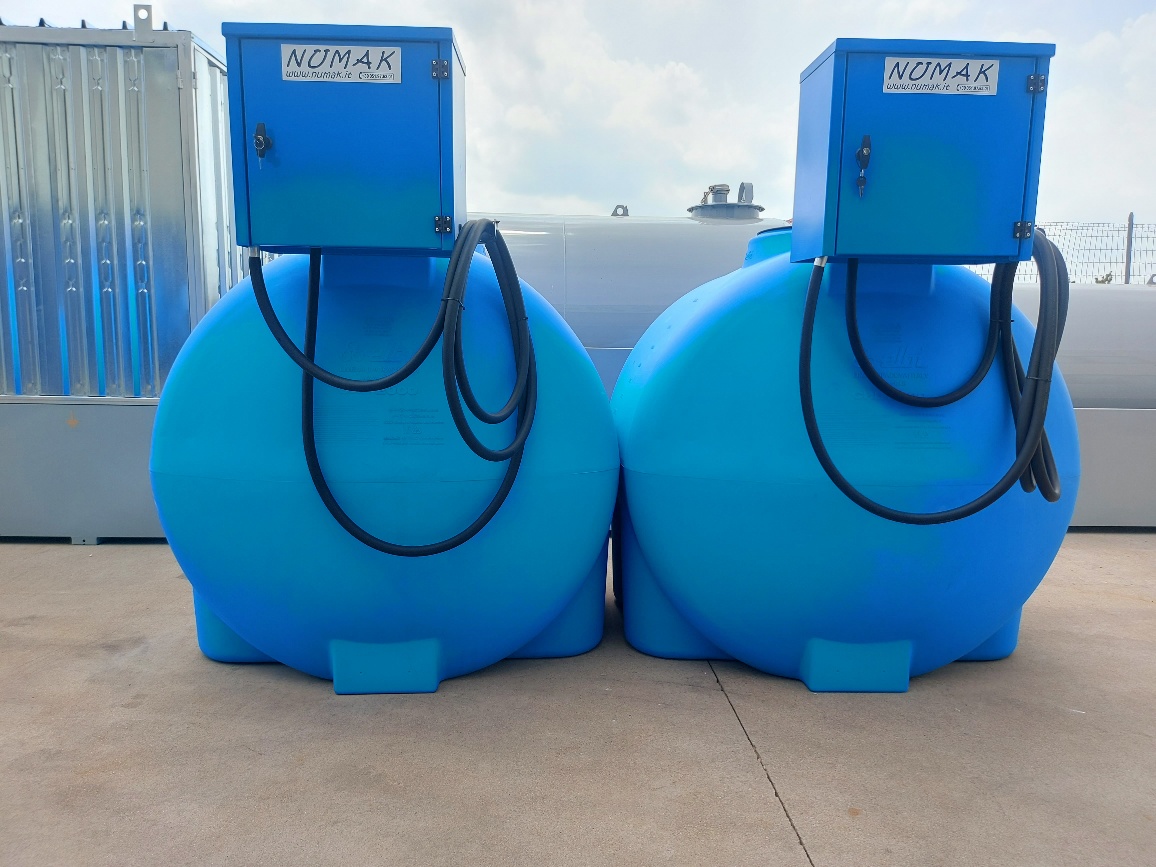

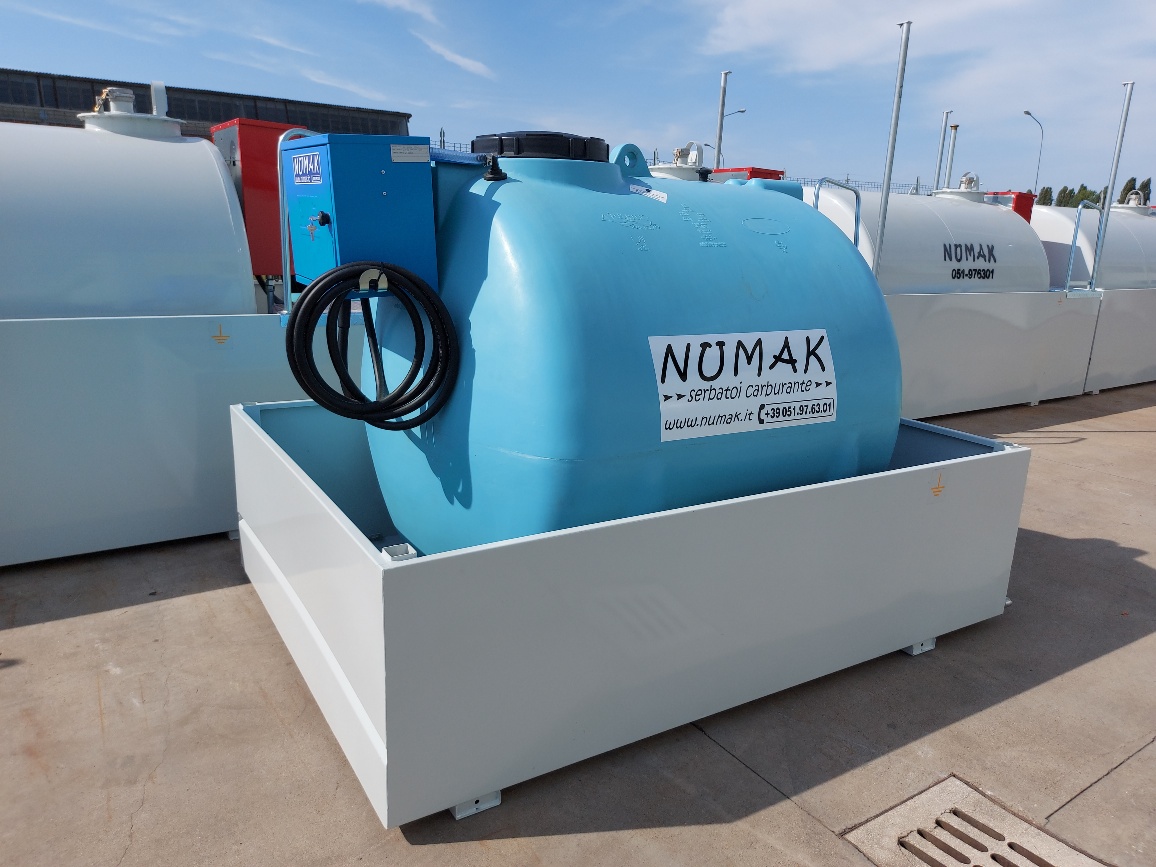

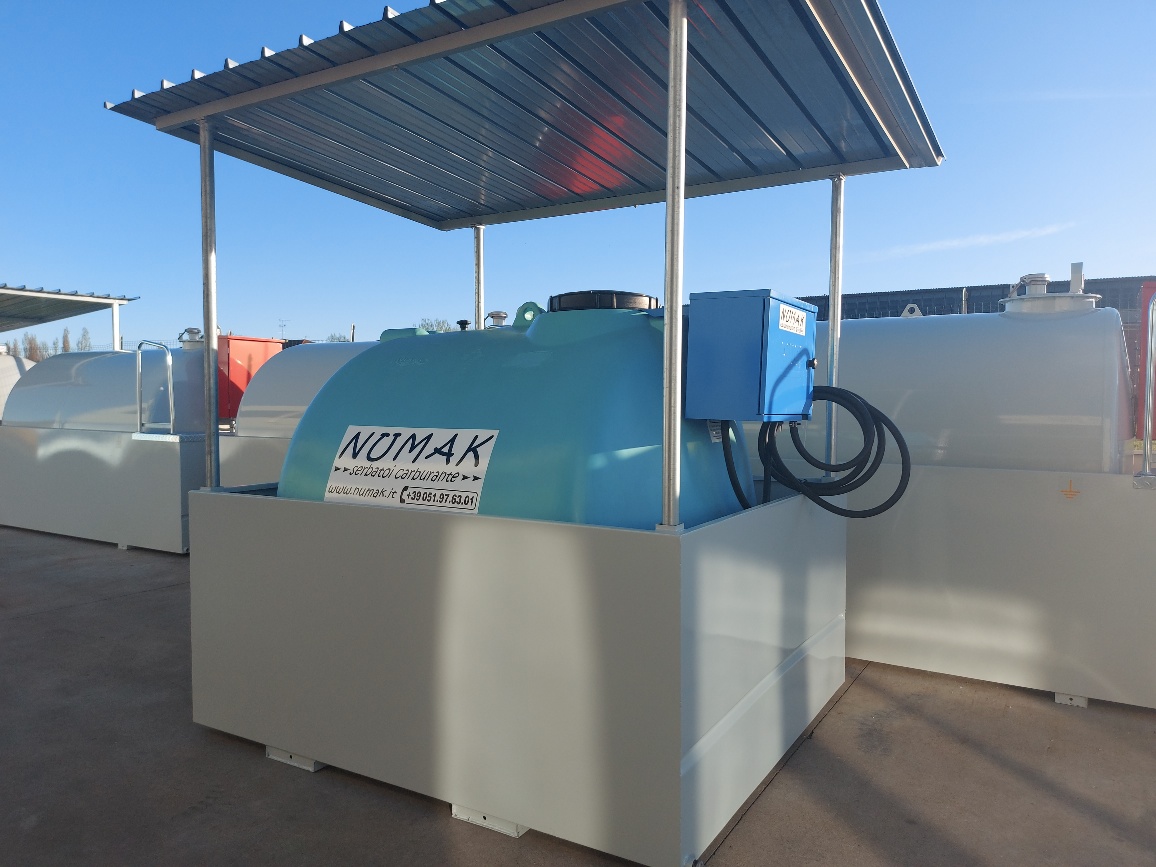

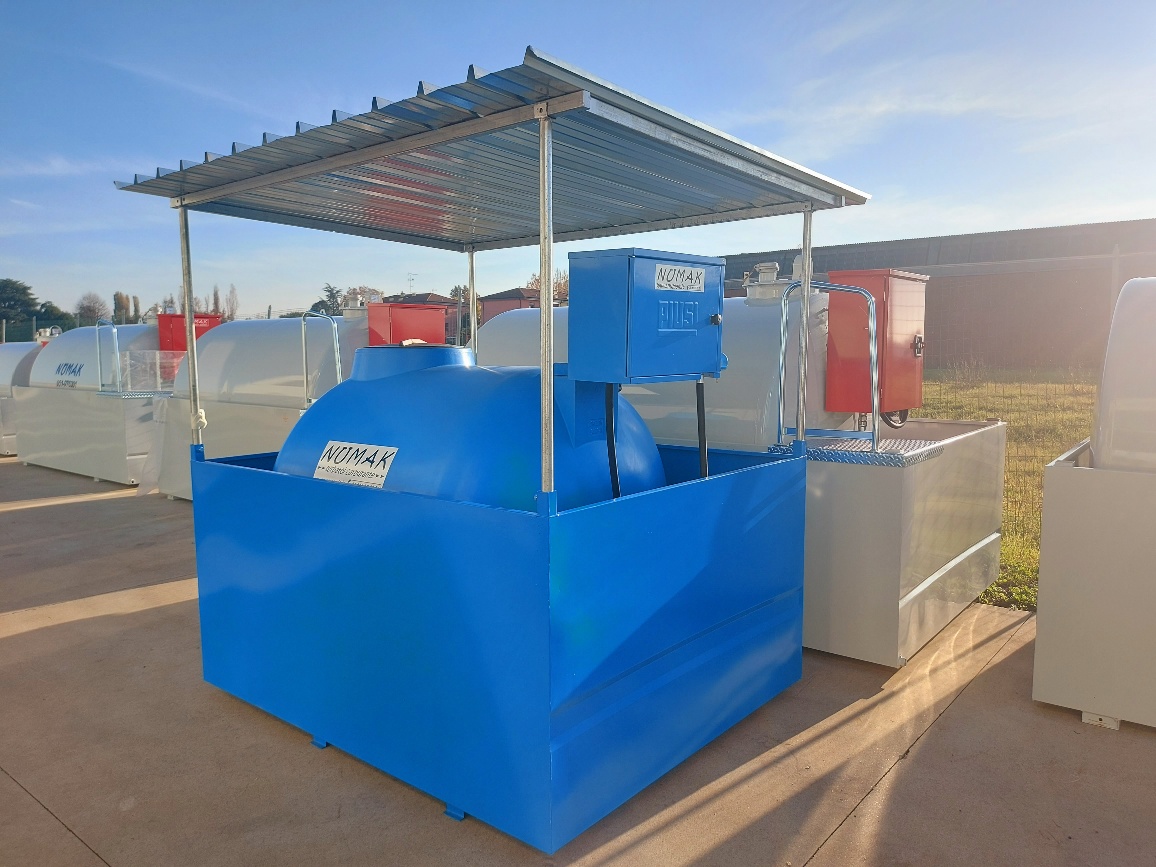

Our Adblue Tanks can be made either in stainless steel or in polyethylene
with distribution system suitable for product management.
Adblue tanks capacity from 2.000 to 12.000 liters are equipped with:
- manhole with threaded lid with vent
- flat sufaces for the application of any attacks

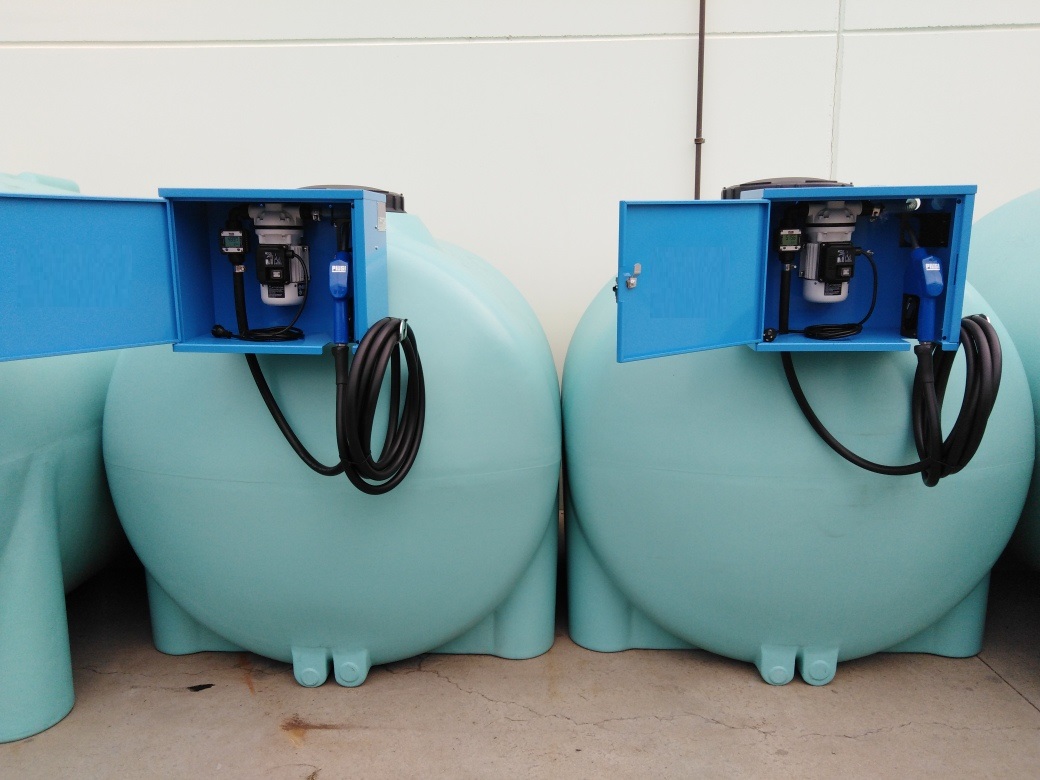

All tanks are complete with distribution unit

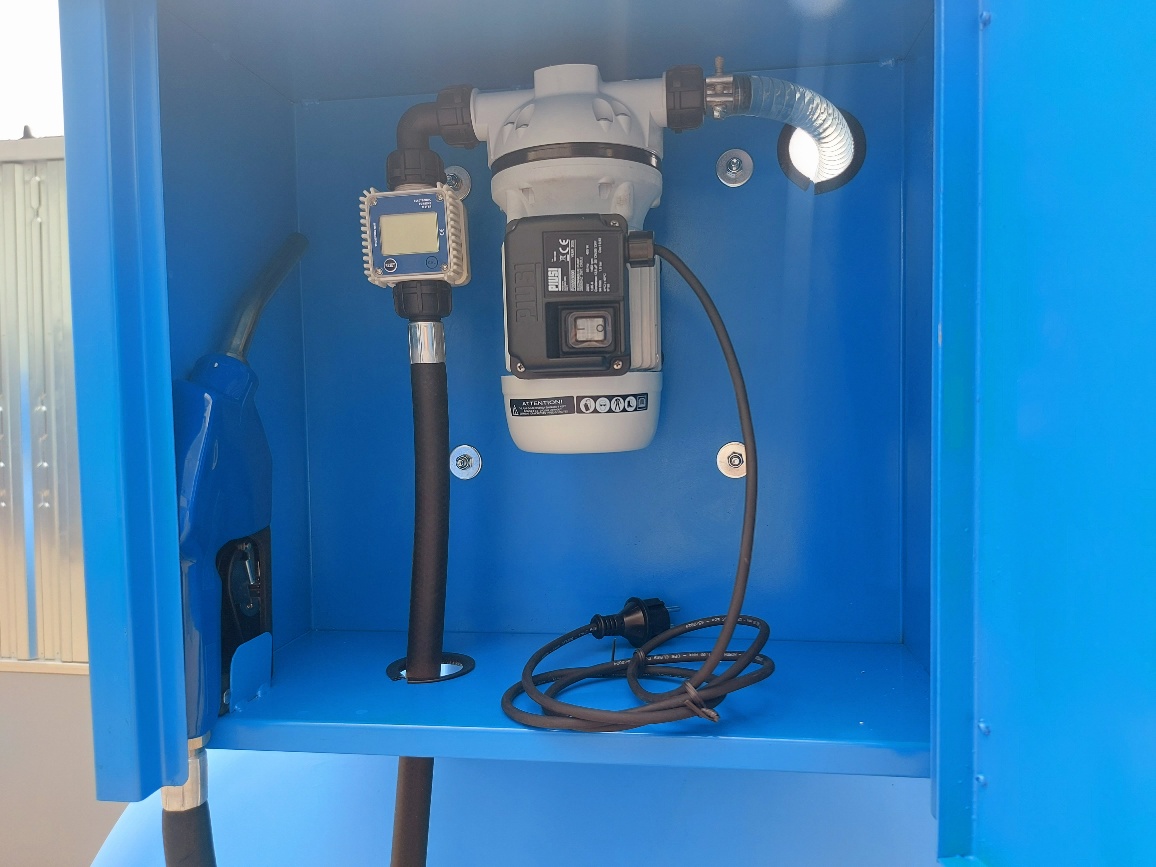

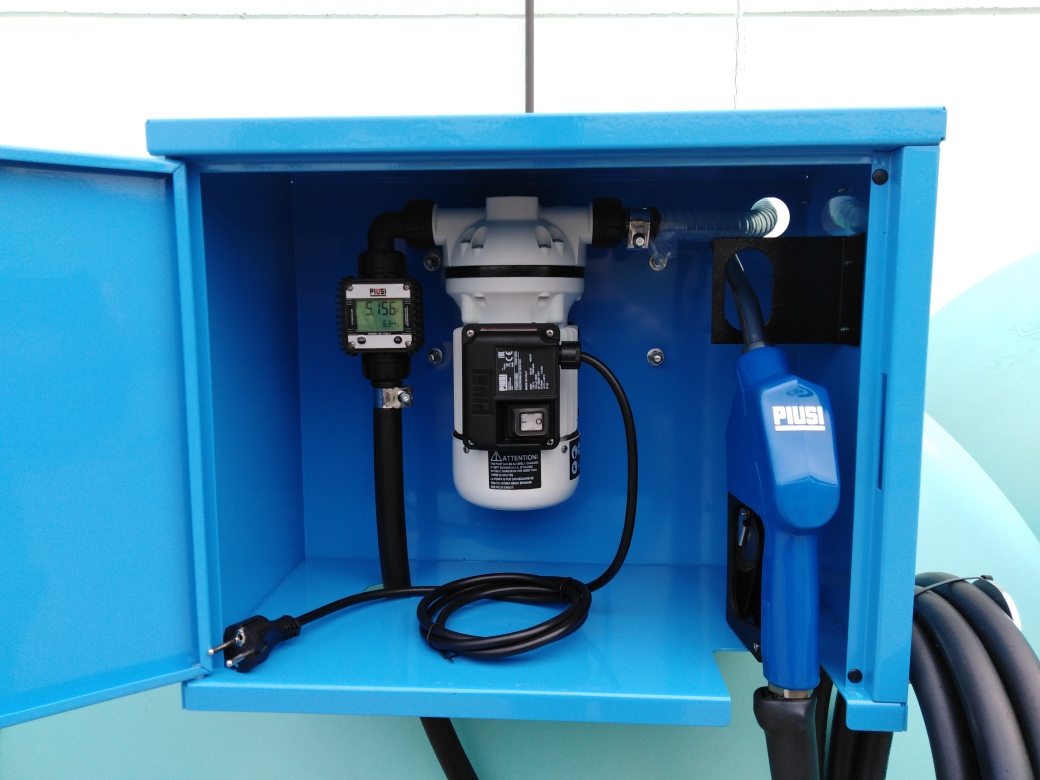

Technical characteristics of the distribution unit:
- Metal box with lock
- Membrane pump
Voltage 230V / 50Hz
- Joint for hose adapter of 3/4"
- ON/OFF switch
- Duty cycle 20 min
- Hose Ø 3/4" lenght 4 mt
- Digital flow-meter K24
- Automatic inox nozzle flow-rate 32 l/min
Code | Capacity | Dimensions (lenght x width x height mm) |
SAP3000U | 3000 lt | 1850 x 1600 x 1660 |
SAP5000U | 5000 lt | 2320 x 1780 x 1860 |
SAP7500U | 7500 lt | 2650 x 2000 x 2100 |

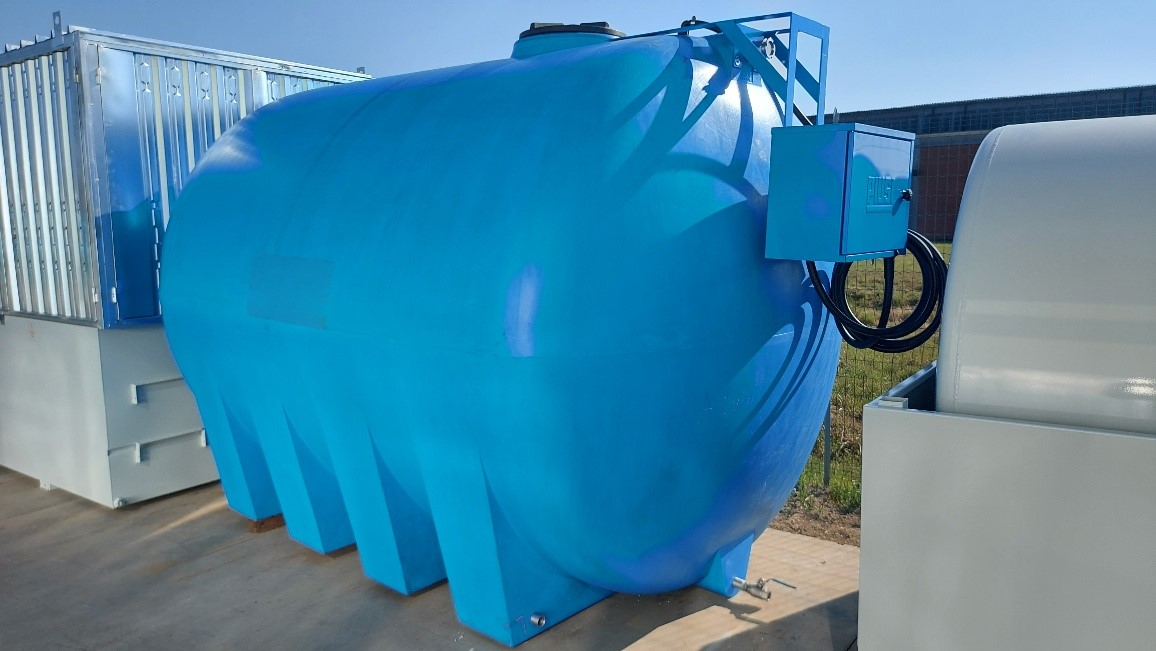

SAP12000PU | 11500 lt | 3100 x 2200 x 2250 |
Fill out our information request form with all your data and your request, we will reply in the shortest time possible.
